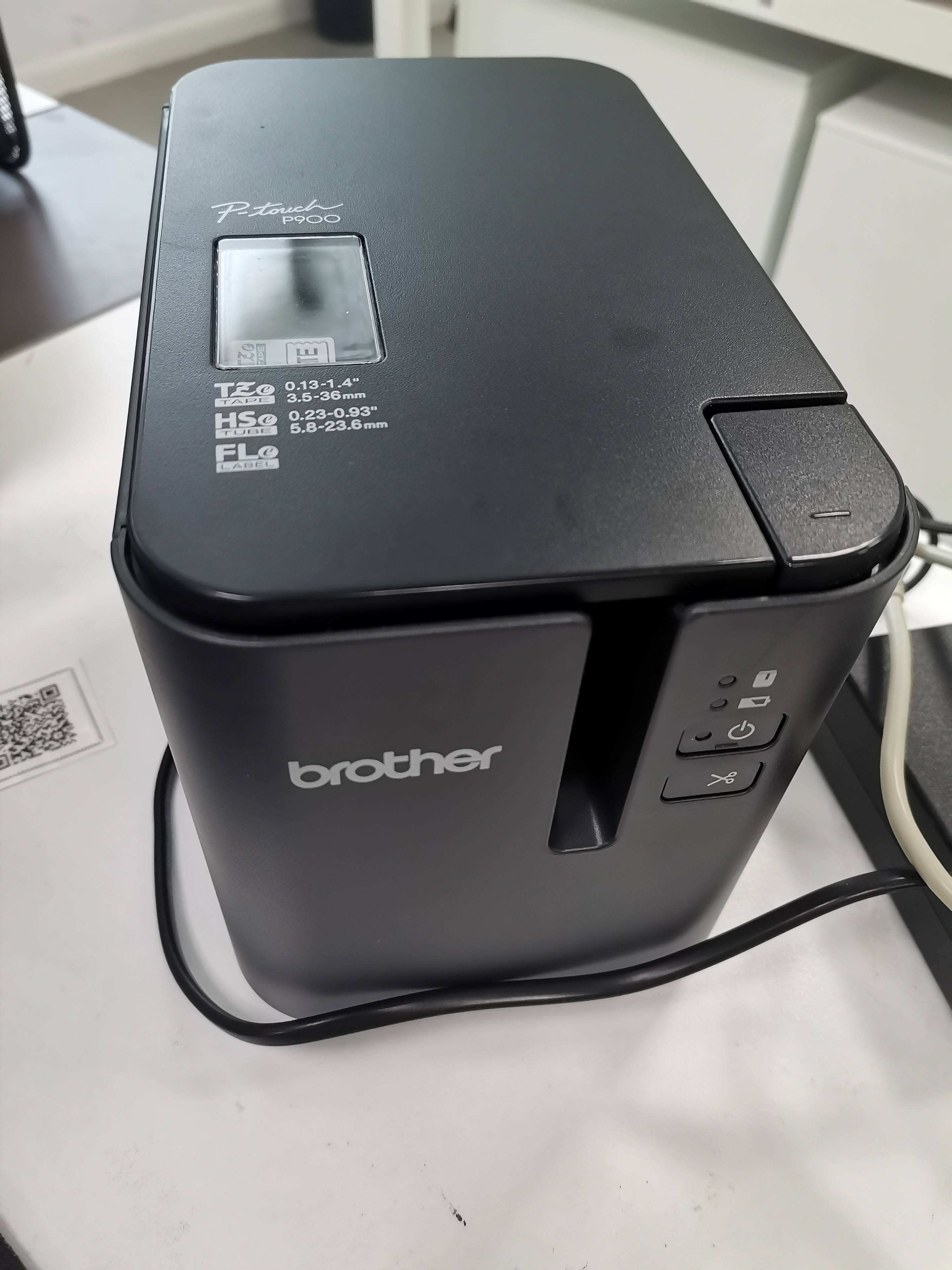

P-Touch P900 打印机使用
驱动安装
支持操作系统
Windows 11, Windows 10 (32-bit), Windows 10 (64-bit), Windows 8.1 (32-bit), Windows 8.1 (64-bit)
基于使用情况、Windows 7 (32-bit/64-bit) 可正常运行。
适用机型
PT-P900/P900c, PT-P900W/P900Wc, PT-P950NW
SDK 下载
需根据机器操作系统内容，下载对应位数的SDK安装程序，否则会提示版本不兼容。
模板编辑器
打印机支持多尺寸打印纸，更换不同尺寸打印纸时，需调整模板内容。
尺寸不匹配时，打印时会给出相应错误提示。
与 Vue 集成
因为考虑到后端程序运行的环境是 CentOS，为保证后续的兼容性，最终选择浏览器直连打印机的方式进行打印。
支持Chrome、Edge、Firefox 浏览器。
本文代码运行在 Edge 浏览器下。
如果需断网部署，推荐使用 Firefox 浏览器。
思路

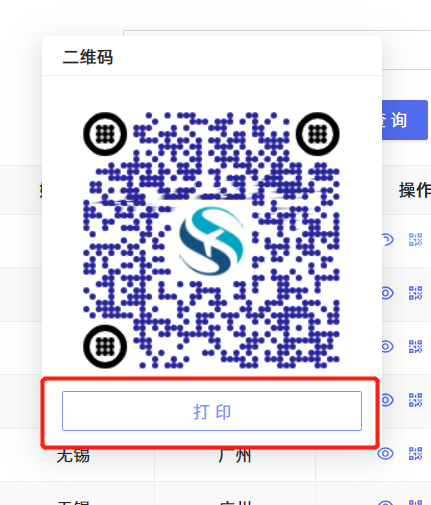

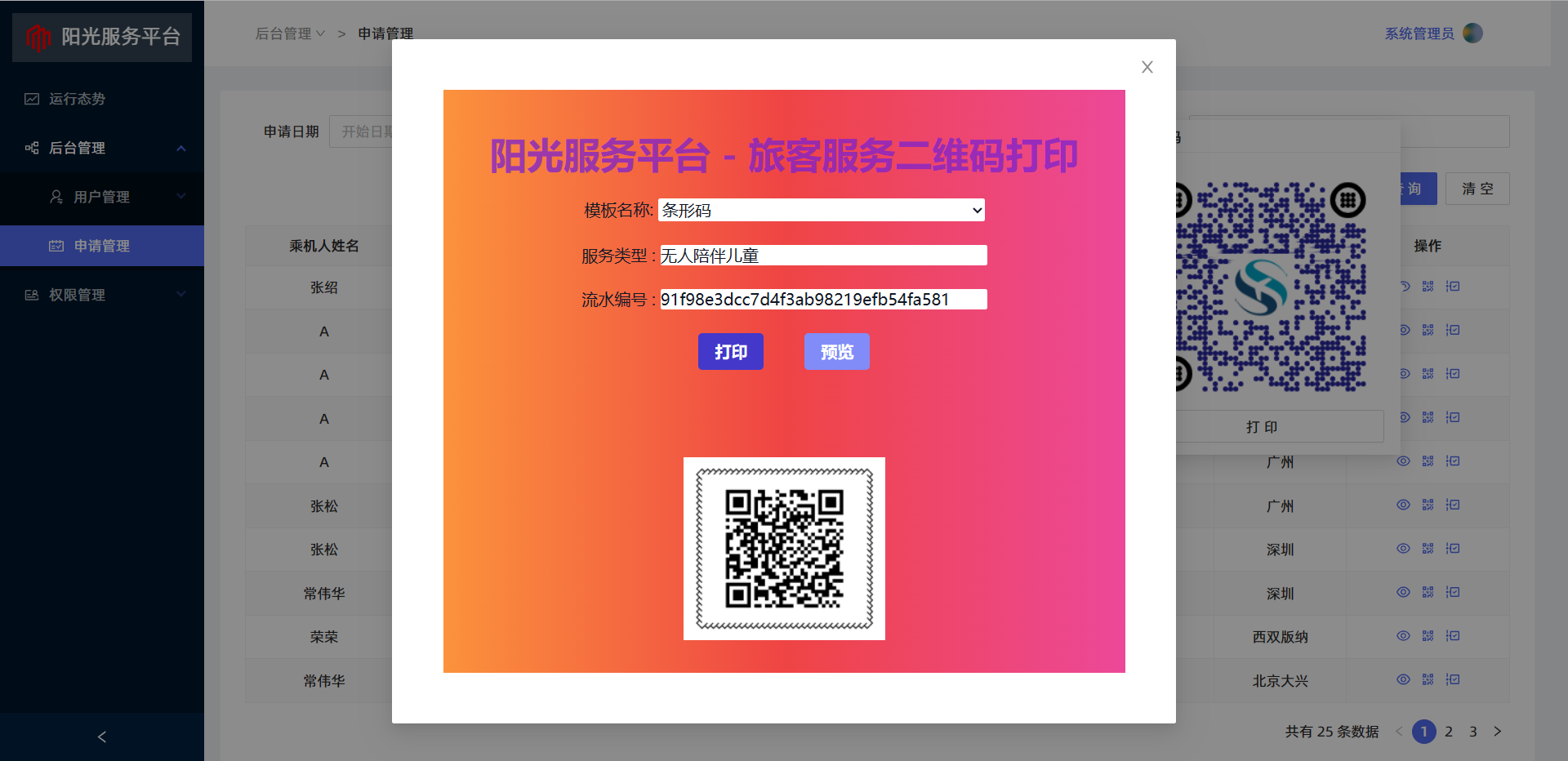

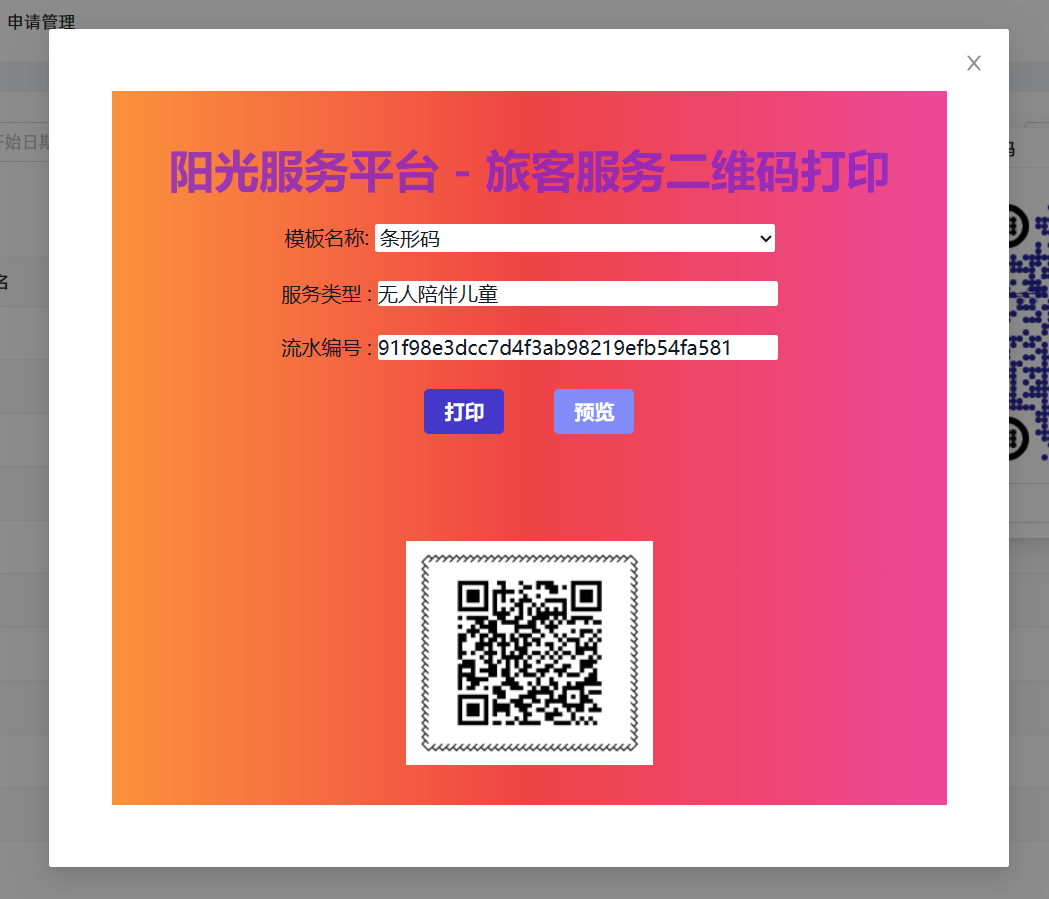

用户点击打印按钮，打开预览弹窗(iframe方式)，在iframe页面内调用官方SDK和提取设计的二维码模板进行二维码图片预览和打印。
代码
vue
<template>
<div>
<a-modal
v-model:visible="printDialogVisible"
:destroyOnClose="true"
:maskClosable="false"
:z-index="2000"
:closable="true"
width="50vw"
:footer="null"
:body-style="bodystyle"
centered
>
<iframe
ref="iframeRef"
frameborder="no"
:border="0"
marginwidth="0"
marginheight="0"
scrolling="no"
allowtransparency="true"
style="width: 100%; height: 100%"
:src="printDialogUrl"
/>
</a-modal>
</div>
</template>ts
const appPrintUrl = inject<string>('appPrintUrl')
const iframeRef = shallowRef()
const printDialogUrl = ref('')
const printDialogVisible = ref<boolean>(false)
const doPrint = (applicationForm: ApplicationFormListModel) => {
printDialogVisible.value = true
printDialogUrl.value = `${appPrintUrl}`
}
const bodystyle = {
height: '90vh',
padding: '50px',
overflow: 'hidden',
overflowY: 'disabled'
}html
<!--
'*************************************************************************
'
' b-PAC 3.2 Component Sample for Extensions (JS_NamePlate.html)
'
' (C)Copyright Brother Industries, Ltd. 2019
'
'*************************************************************************/
-->
<!doctype html>
<html lang="en" class="text-gray-900 leading-tight">
<head>
<meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
<title>旅客服务二维码打印页面</title>
<script type="module">
import * as bpac from './bpac.js';
const DATA_FOLDER = "D:\\Templates\\";
//const DATA_FOLDER = "http://your_server/";
//------------------------------------------------------------------------------
// Function name : DoPrint
// Description : Print, Preview Module
//------------------------------------------------------------------------------
window.DoPrint = async function DoPrint(strExport) {
if (bpac.IsExtensionInstalled() == false) {
const agent = window.navigator.userAgent.toLowerCase();
const ischrome = (agent.indexOf('chrome') !== -1) && (agent.indexOf('edge') === -1) && (agent.indexOf('opr') === -1)
if (ischrome)
window.open('https://chrome.google.com/webstore/detail/ilpghlfadkjifilabejhhijpfphfcfhb', '_blank');
return;
}
try {
const theForm = document.getElementById("myForm");
const nItem = theForm.cmbTemplate.selectedIndex;
const strPath = DATA_FOLDER + theForm.cmbTemplate.options[nItem].value;
const objDoc = bpac.IDocument;
const ret = await objDoc.Open(strPath);
if (ret == true) {
const objQrCode = await objDoc.GetObject("objQrCode");
objQrCode.Text = theForm.applcationTypeCode.value + '|' + theForm.applicationFormId.value;
// const objName = await objDoc.GetObject("objName");
// objName.Text = theForm.txtName.value;
// theForm.txtWidth.value = await objDoc.Width;
if (strExport == "") {
objDoc.StartPrint("", 0);
objDoc.PrintOut(1, 0);
objDoc.EndPrint();
}
else {
const image = await objDoc.GetImageData(4, 0, 180);
const img = document.getElementById("previewArea");
img.src = image;
}
objDoc.Close();
}
}
catch (e) {
console.log(e);
}
}
</script>
<script src="./jquery.js" ></script>
<script>
function GetQueryString(name) {
var reg = new RegExp("(^|&)" + name + "=([^&]*)(&|$)", "i");
var r = window.location.search.substr(1).match(reg); //获取url中"?"符后的字符串并正则匹配
var context = "";
if (r != null)
context = decodeURIComponent(r[2]);
reg = null;
r = null;
return context == null || context == "" || context == "undefined" ? "" : context;
}
$(document).ready(function(){
$('#applcationTypeCode').val(GetQueryString('applcationTypeCode'))
$('#applicationFormId').val(GetQueryString('applicationFormId'))
$('#applcationTypeName').val(GetQueryString('applcationTypeName'))
});
</script>
<script src="./tailwindcss.js"></script>
<script>
tailwind.config = {
theme: {
extend: {
colors: {
clifford: '#506BEE',
}
}
}
}
</script>
</head>
<body class="h-screen rounded-md bg-gradient-to-r from-orange-400 via-red-500 to-pink-500 select-none">
<form id="myForm" action="" class="container h-full mx-auto">
<div class="container h-full mx-auto">
<div class="flex h-full flex-col justify-between py-8 items-center">
<div class="flex h-1/2 flex-col justify-around items-center">
<h2 class="text-4xl text-purple-700 text-opacity-75 text-center font-semibold">阳光服务平台 - 旅客服务二维码打印</h2>
<div> 模板名称:
<select class="rounded-sm outline-none" name="cmbTemplate" id="cmbTemplate" style="width: 320px; height: 22px">
<option value="QR.lbx" class="rounded-sm" selected="selected">条形码</option>
</select>
</div>
<div>
服务类型 :
<input id="applcationTypeCode" type="hidden" style="width: 320px" value="" />
<input id="applcationTypeName" placeholder="服务类型" class="outline-none placeholder-gray-500 placeholder-opacity-50 rounded-sm" readonly type="text" style="width: 320px" value="" />
</div>
<div>
流水编号 :
<input id="applicationFormId" readonly type="text" placeholder="流水编号" class="outline-none placeholder-gray-500 placeholder-opacity-50 rounded-sm" style="width: 320px" value="" />
</div>
<div class="grid grid-cols-2 gap-10">
<input type="button" id="btnPrint" class="bg-indigo-700 font-semibold text-white py-2 px-4 rounded cursor-pointer" onclick="DoPrint('')" value="打印" />
<input type="button" id="btnPreview" class="bg-indigo-400 font-semibold text-white py-2 px-4 rounded cursor-pointer" onclick="DoPrint('Preview.bmp')" value="预览" />
</div>
</div>
<div class=" text-center">
<img id='previewArea'></img>
</div>
</div>
</div>
</form>
</body>
</html>
