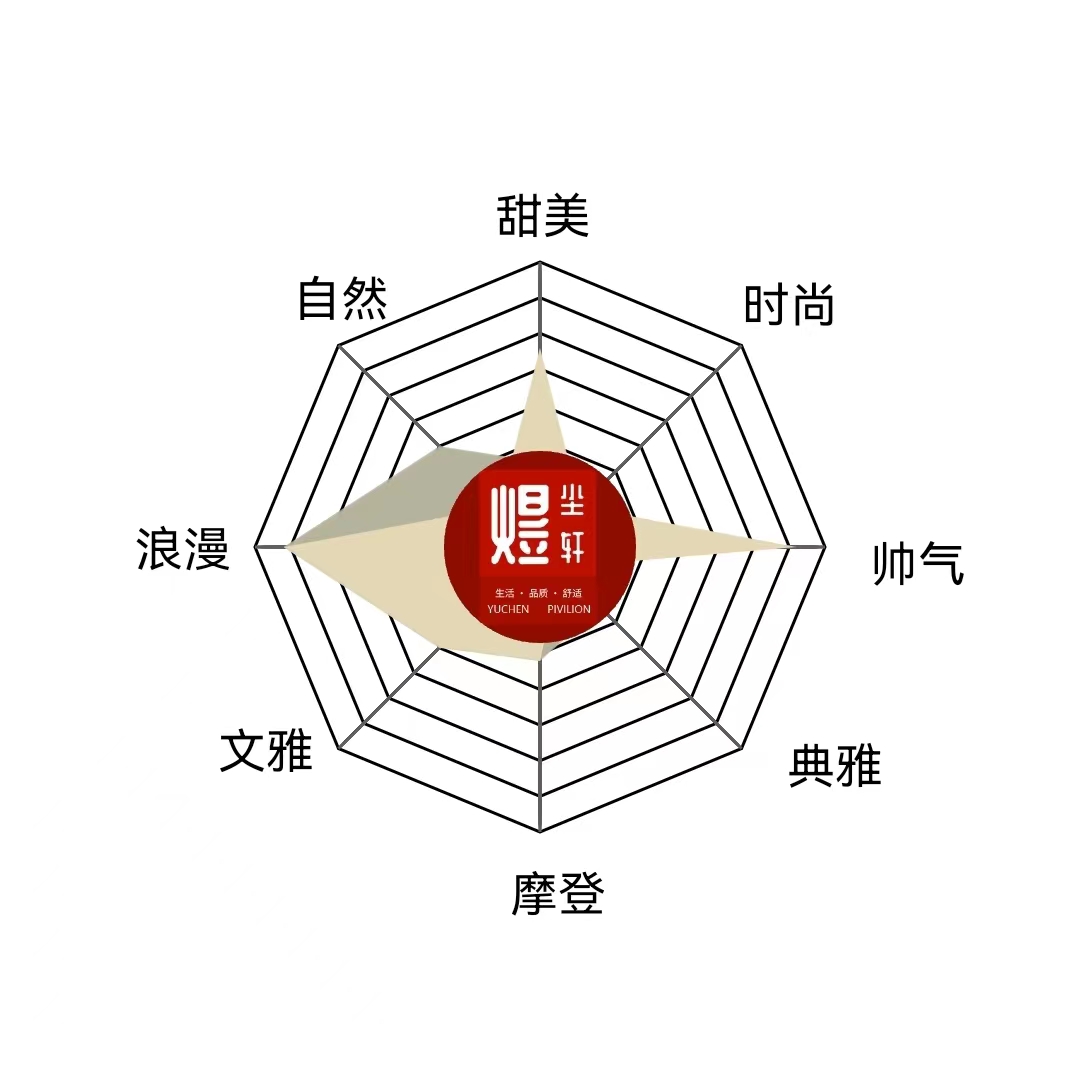

给小程序添加一个评分分值分布雷达图，完善评价体系

背景

最近平台上线了评价功能，支持对服务人员进行评价，那么后台如何统计和直观展示评价呢。

如何搭建完整的评价体系呢?

WXML

xml

<view class="canvas-container" bindtap="clickCanvas">
  <canvas canvas-id="radarcanvas1" type="2d" id="radarcanvas1" class="poster-canvas" style="width:100%; height:100%;"
    disable-scroll="{{ true }}" />
  <canvas canvas-id="radarcanvas2" type="2d" id="radarcanvas2" class="poster-canvas" style="width:100%; height:100%;"
    disable-scroll="{{ true }}" />
  <canvas canvas-id="radarcanvas3" type="2d" id="radarcanvas3" class="poster-canvas" style="width:100%; height:100%;"
    disable-scroll="{{ true }}" />
  <canvas canvas-id="radarcanvas4" type="2d" id="radarcanvas4" class="poster-canvas" style="width:100%; height:100%;"
    disable-scroll="{{ true }}" />
  <canvas canvas-id="radarcanvas5" type="2d" id="radarcanvas5" class="poster-canvas" style="width:100%; height:100%;"
    disable-scroll="{{ true }}" />
</view>

LESS

less

.canvas-container {
  margin: 0 auto;
  width: 100vw;
  height: 100vh;

  .poster-canvas {
    margin: 0 auto;
    position: absolute;
    top: 0;
    left: 0;
    // left: 50%;
    // transform: translateX(-50%);
  }
}

TypeScript

typescript


import Wechat from "~/utils/wechat";

const { pixelRatio, windowHeight, windowWidth } = wx.getSystemInfoSync();
const mdData = [['甜美', 30], ['时尚', 20], ['帅气', 20], ['典雅', 30], ['摩登', 40], ['文雅', 50], ['浪漫', 90], ['自然', 50]]; //内心
const mdData2 = [['甜美', 70], ['时尚', 20], ['帅气', 90], ['典雅', 10], ['摩登', 40], ['文雅', 50], ['浪漫', 90], ['自然', 20]]; //外在
let mData: any = [];
let mData2: any[] = [];
const mCount = mdData.length; //边数
let mCenter: any = ''; //中心点
let mRadius: any = ''; //半径(减去的值用于给绘制的文本留空间)
const mAngle = Math.PI * 2 / mCount; //角度
const mColorPolygon = '#000000'; //多边形颜色
const mColorLines = '#5e5e5e'; //伞骨颜色
const mColorText = '#000000'; //文字颜色
let Interval = 0;
let lineInterval = 0;
const totalTime = 1000; //总执行时间
const spaceTime = 10; //每隔多久执行一次
const speed = spaceTime / totalTime; //每执行一次完成的进度百分比
let precent = 0; //当前完成的进度百分比
let precent2 = 0;
let lineprecent = 0;

const outColor = 'rgba(183, 179, 156, 0.8) ';
const innerColor = 'rgba(228, 215, 182, 0.8) ';

let canvas1: any = null;
let canvas2: any = null;
let canvas3: any = null;
let canvas4: any = null;
let canvas5: any = null;

Page({

  /**
   * 页面的初始数据
   */
  data: {
  },

  /**
   * 生命周期函数--监听页面加载
   */
  onLoad() {
    const _self = this
    // // 创建画布
    // canvas.create({
    //   query: '.poster-canvas', // 必传，canvas元素的查询条件
    //   rootWidth: 750, // 参考设备宽度 (即开发时UI设计稿的宽度，默认375，可改为750)
    //   bgColor: '#fff', // 背景色，默认透明
    //   component: this, // 自定义组件内需要传 this
    //   radius: 16 // 海报图圆角，如果不需要可不填
    // })
    // canvas.draw({
    //   series: [
    //     {
    //       type: Text,
    //       text: 'Hello World',
    //       fontSize: 30
    //     },
    //     {
    //       type: Arc,
    //       x: 300,
    //       y: 450,
    //       r: 200,
    //       start: 0,
    //       end: Math.PI * 1.5,
    //       reverse: false,
    //       lineStyle: {
    //         dash: [15, 15],
    //         width: 10,
    //         color: '#09f'
    //       },
    //       zIndex: 0
    //     },
    //     {
    //       type: Arc,
    //       x: 300,
    //       y: 450,
    //       r: 100,
    //       start: 0,
    //       end: Math.PI * 0.5,
    //       reverse: true,
    //       lineStyle: {
    //         dash: [15, 15],
    //         width: 10,
    //         color: '#0ff'
    //       },
    //       zIndex: 0
    //     }
    //   ]
    // })

    var m = [];
    for (var i = 0; i < mCount; i++) {
      m[(i + 6) % mCount] = mdData[i];
    }
    mData = m; //内在

    var m2 = [];
    for (var i = 0; i < mCount; i++) {
      m2[(i + 6) % mCount] = mdData2[i];
    }
    mData2 = m2; //外在
    mCenter = Math.floor(Math.min(windowWidth, windowHeight) / 2); //中心点
    mRadius = mCenter - 85; //半径(减去的值用于给绘制的文本留空间)

    Promise.all([
      _self.initCanvas('#radarcanvas1'),
      _self.initCanvas('#radarcanvas2'),
      _self.initCanvas('#radarcanvas3'),
      _self.initCanvas('#radarcanvas4'),
      _self.initCanvas('#radarcanvas5'),
    ]).then((canvasArr) => {
      canvas1 = canvasArr[0]
      canvas2 = canvasArr[1]
      canvas3 = canvasArr[2]
      canvas4 = canvasArr[3]
      canvas5 = canvasArr[4]

      _self.initRadarCanvas(); //雷达图文字+边框
      _self.clickCanvas(); //调用画雷达图
    })
  },

  /**
   * 生命周期函数--监听页面初次渲染完成
   */
  onReady() {


  },

  /**
   * 生命周期函数--监听页面显示
   */
  onShow() {
  },

  /**
   * 生命周期函数--监听页面隐藏
   */
  onHide() {

  },

  /**
   * 生命周期函数--监听页面卸载
   */
  onUnload() {

  },

  /**
   * 页面相关事件处理函数--监听用户下拉动作
   */
  onPullDownRefresh() {

  },

  /**
   * 页面上拉触底事件的处理函数
   */
  onReachBottom() {

  },

  /**
   * 用户点击右上角分享
   */
  onShareAppMessage() {

  },
  initCanvas(canvasId: string) {
    const _self = this
    return new Promise<any>((resolve, reject) => {
      wx.createSelectorQuery().in(_self)
        .select(canvasId).fields({ node: true, size: true, context: true }).exec(res => {
          const canvas = res[0].node
          canvas.width = res[0].width * pixelRatio
          canvas.height = res[0].height * pixelRatio
          const context = canvas.getContext('2d')// as CanvasRenderingContext2D
          context.scale(pixelRatio, pixelRatio)
          resolve(canvas)
        })
    })
  },
  clearAll() {
    // canvas1.getContext('2d')?.clearRect(0, 0, mW, mH);
    canvas2.getContext('2d')?.clearRect(0, 0, windowWidth, windowHeight);
    canvas3.getContext('2d')?.clearRect(0, 0, windowWidth, windowHeight);
    canvas4.getContext('2d')?.clearRect(0, 0, windowWidth, windowHeight);
    canvas5.getContext('2d')?.clearRect(0, 0, windowWidth, windowHeight);
  },
  //画雷达
  clickCanvas: function () {
    var that = this;
    precent = 0;
    precent2 = 0;
    lineprecent = 0;

    clearInterval(Interval);
    clearInterval(lineInterval);
    that.clearAll()

    lineInterval = setInterval(function () { //渐进画伞骨
      if (lineprecent <= 1) {
        that.drawLines(canvas2);
      } else {
        clearInterval(lineInterval);
      }
    }, spaceTime - 20);

    setTimeout(function () { //渐进画数据区域块
      Interval = setInterval(function () {
        if (precent <= 1) {
          that.drawRegion(canvas3, outColor);
          that.drawRegion2(canvas4, innerColor);
        } else {
          clearInterval(Interval);
        }
      }, spaceTime - 20);
    }, 10);

    that.drawPhoto(canvas5);
  },
  initRadarCanvas: function () {
    var that = this;

    precent = 0;
    lineprecent = 0;

    that.drawPolygon(canvas1); //画伞架
    that.drawText(canvas1); //画文字
  },
  // CanvasRenderingContext2D
  drawPhoto(canvas: any) {
    const context = canvas.getContext('2d')// as CanvasRenderingContext2D
    // context.scale(dpr, dpr)

    context.save();
    const x = mCenter - 32;
    const y = mCenter - 32;
    const r = 32
    const d = r * 2;
    context.beginPath();
    context.arc(x + r, y + r, r, 0, 2 * Math.PI);
    context.clip();
    const image = canvas.createImage();
    image.src = '../../assets/images/ycx_cover.png'
    image.onload = function () {
      wx.logger.debug('开始绘制')
      context.drawImage(image, x, y, d, d);
      // context.drawImage(image, 0, 0, 144, 144)
      wx.logger.debug('结束绘制')
    }

    // wx.getImageInfo({
    // 	src: '../../assets/images/brand.png',
    // 	success(res) {
    // 		context.drawImage(res.path, x, y, d, d);
    // 		context.stroke()
    // 		// 将Canvas绘制出来
    // 		context.draw()
    // 	}
    // })

  },
  // 绘制多边伞架
  drawPolygon: function (canvas: any) {
    const ctx = canvas.getContext('2d')// as CanvasRenderingContext2D
    // ctx.scale(dpr, dpr)
    ctx.save();
    ctx.strokeStyle = mColorPolygon;
    // ctx.setStrokeStyle(mColorPolygon);

    var r = mRadius / mCount; //单位半径

    //画8个圈
    for (var i = 0; i < mCount; i++) {
      ctx.beginPath();
      var currR = r * (i + 1); //当前半径
      //画8条边
      for (var j = 0; j < mCount; j++) {
        var x = mCenter + currR * Math.cos(mAngle * j);
        var y = mCenter + currR * Math.sin(mAngle * j);
        ctx.lineTo(x, y);
      }
      ctx.closePath()
      ctx.stroke();
      //ctx.draw(0, 0, 500, 500);
    }
    ctx.restore();
  },
  //绘制伞骨
  drawLines: function (canvas: any) {
    const ctx = canvas.getContext('2d')// as CanvasRenderingContext2D
    // ctx.scale(dpr, dpr)
    ctx.save();
    ctx.beginPath();
    ctx.strokeStyle = mColorLines;

    for (var i = 0; i < mCount; i++) {
      var x = mCenter + mRadius * Math.cos(mAngle * i) * lineprecent;
      var y = mCenter + mRadius * Math.sin(mAngle * i) * lineprecent;
      ctx.moveTo(mCenter, mCenter);
      ctx.lineTo(x, y);
    }

    ctx.stroke();

    var oldPrectet = lineprecent;
    lineprecent = lineprecent + speed;
    if (oldPrectet < 1 && lineprecent > 1) {
      lineprecent = 1;
    }

    ctx.restore();
  },
  //绘制顶点文本
  drawText: function (canvas: any) {
    const ctx = canvas.getContext('2d')// as CanvasRenderingContext2D
    // ctx.scale(dpr, dpr)

    ctx.save();
    const fontSize = 16;
    ctx.font = fontSize + 'px AlibabaPuHuiTiMedium';
    ctx.fillStyle = mColorText

    for (var i = 0; i < mCount; i++) {
      var x = mCenter + mRadius * Math.cos(mAngle * i);
      var y = mCenter + mRadius * Math.sin(mAngle * i);
      //通过不同的位置，调整文本的显示位置
      if (mAngle * i >= 0 && mAngle * i < Math.PI / 2) {
        ctx.fillText(mData[i][0], x + 15, y + fontSize - 5);
      } else if (mAngle * i == Math.PI / 2) {
        ctx.fillText(mData[i][0], x - 10, y + fontSize + 10);
      } else if (mAngle * i > Math.PI / 2 && mAngle * i <= Math.PI) {
        ctx.fillText(mData[i][0], x - 40, y + fontSize - 10);
      } else if (mAngle * i > Math.PI && mAngle * i <= Math.PI * 3 / 2) {
        ctx.fillText(mData[i][0], x - 15, y - 10);
      } else {
        ctx.fillText(mData[i][0], x, y - 8);
      }
    }

    ctx.restore();
  },
  //绘制数据区域 外在
  drawRegion: function (canvas: any, fillColor: string) {
    const ctx = canvas.getContext('2d')// as CanvasRenderingContext2D
    // ctx.scale(dpr, dpr)

    ctx.save();
    ctx.beginPath();
    for (var i = 0; i < mCount; i++) {
      var x = mCenter + mRadius * Math.cos(mAngle * i) * mData[i][1] / 100 * precent;
      var y = mCenter + mRadius * Math.sin(mAngle * i) * mData[i][1] / 100 * precent;
      ctx.lineTo(x, y);
    }

    ctx.closePath();
    ctx.save();
    ctx.fillStyle = fillColor;
    ctx.fill();
    // ctx.draw(0, 0, 500, 500);

    var oldPrectet = precent;
    precent = precent + speed;
    if (oldPrectet < 1 && precent > 1) {
      precent = 1;
    }

    ctx.restore();
  },
  //绘制数据区域2 内心
  drawRegion2: function (canvas: any, fillColor: string) {
    const ctx = canvas.getContext('2d')// as CanvasRenderingContext2D
    // ctx.scale(dpr, dpr)
    ctx.save();

    ctx.beginPath();
    for (var i = 0; i < mCount; i++) {
      var x = mCenter + mRadius * Math.cos(mAngle * i) * mData2[i][1] / 100 * precent2;
      var y = mCenter + mRadius * Math.sin(mAngle * i) * mData2[i][1] / 100 * precent2;
      ctx.lineTo(x, y);
    }

    ctx.closePath();
    ctx.save();
    ctx.fillStyle = fillColor;
    ctx.fill();

    var oldPrectet = precent2;
    precent2 = precent2 + speed;
    if (oldPrectet < 1 && precent2 > 1) {
      precent2 = 1;
    }

    ctx.restore();
  }
})
